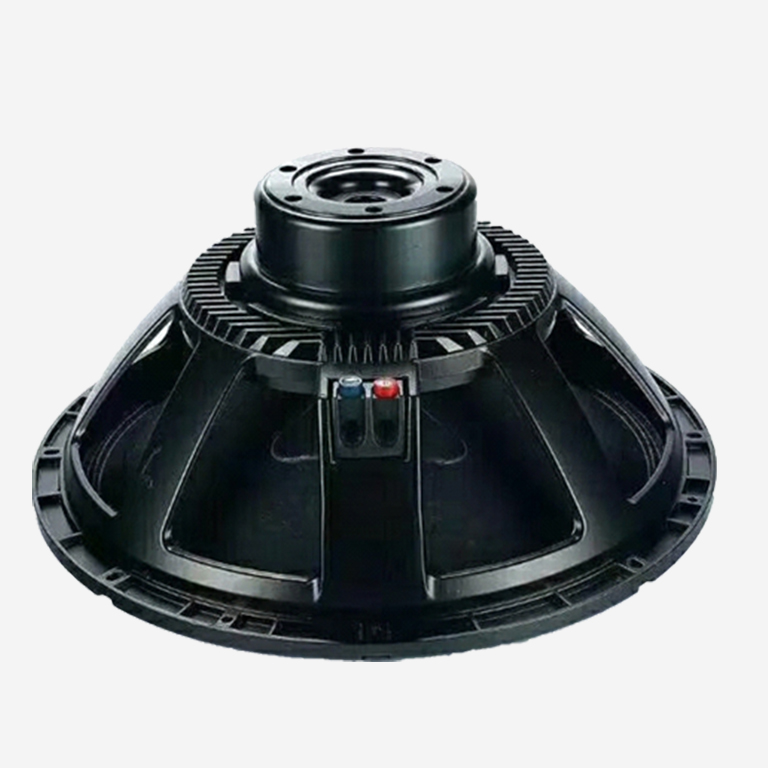

YR-18L400 18inch 800W Professional Stereo Sound Hifi Big Power Woofer Speaker


18inch Professional Woofer Speaker

Basic Information

Model NumberYR-18L400
Frequency Range
Program Power1600W
Voice Coil100mm/4inch
Packing Size48*48*21.5cm
Transport PackageCarton
OriginGuangzhou, China

Product Description

1. Nominal diameter: 460mm/18.1inch

2. Rated impedance: 8 ohm

3. Power handling capacity: 800W

4. Program power: 1600W

5. Sensitivity 1W/1m: 97.2dB

6. Frequency range:30-1800Hz

7. Effective piston diameter: 395mm/18inch

8. Minmum impedance: 6.3ohm

9. Voice Coil diameter: 100mm/4inch

10. Voice coil material: Copper

11. Voice coil winding depth: 25mm/0.9inch

12. Number of layers: 2

13. Kind of layer: outside

14: Thickness top plate depth: 9mm/0.4inch

Thiele-Small Parameters

1. Resonance Frequency: 32Hz

2. DC resistance: 5.4ohm

3. Mechanical factor: 9.19

4. Electrical factor: 0.378

5. Total factor: 0.362

6. BL factor: 26.6Txm

7. Effective Moving Mass: 205.1gr

8. Equivalent cas air load: 289 liters

9. Effective piston area: 0.113mm

Mounting Information

1. Overall Diameter: 470mm/18.5inch

2. Bolt Circle Diameter: 438mm

3. Bolt Hole Diameter: 8mm/0.3inch

Baffle Cutout Diameter

1.Baffle Cutout Diameter: 425mm

2. Bolt Circle Diameter: 440/8mm

3. Net Weight: 8.5kg/pcs

4. Shipping Weight: 12.5kg/pcs

5. Package: 1pcs/ctn

6. Packing Size: 48*48*21.5cm

Product Features:

1. 18" woofer

2. 4"voice coil, inner and outer winding

3. high temperature resistant coil, thick bass


Packing details:

Package: 1 piece in a carton

Packing Size: 48*48*21.5cm

QTY(40HQ): 1374PCS

Why choose us?

A: We've been a professional speaker manufacturer for over 10 years.

     We are the great speaker manufacturer in China.

     OEM/ODM service are acceptable.

Our service:

A: We have our own factory, we can make any design and brand.

     We can do with your requirements.

     We have more than 7 engineers for RD, we can finish your sammples in 3-7 days.

     Our capacity is over 90,000 pieces a month, we never delay your shipments.

     We will strictly control the quality, 100% inspection before shipment.

Warranty service:

A: Before the delivery, we will check the items' quality strictly one by one.

     If it is caused by the shipping accidents, we will not responsible for it.

What is the terms of packing?

A: We pack the goods in a brown box with paperboard and 12pcs/box.

How about the supply?

A: We can produce 90,000pieces per month.
