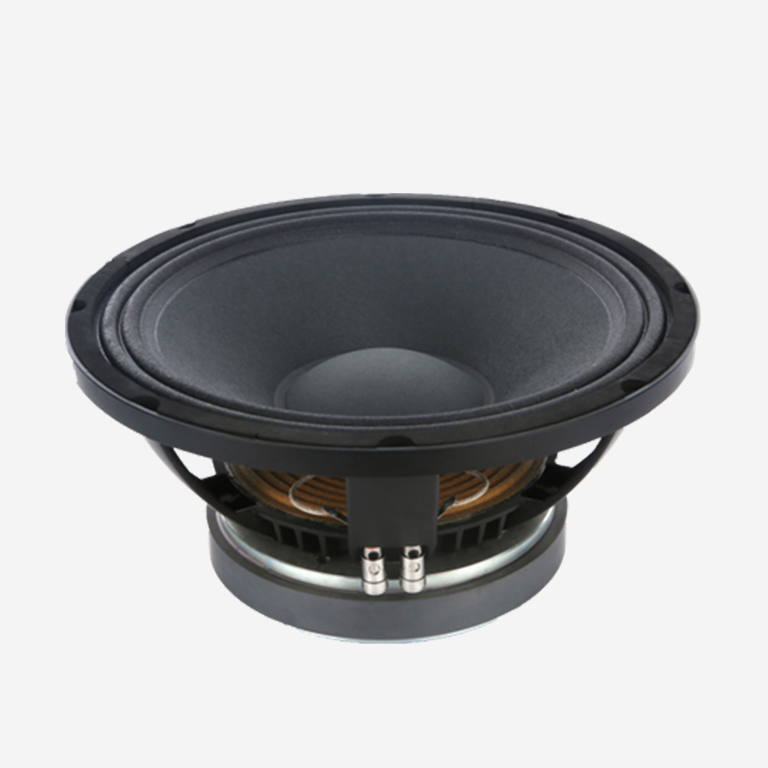

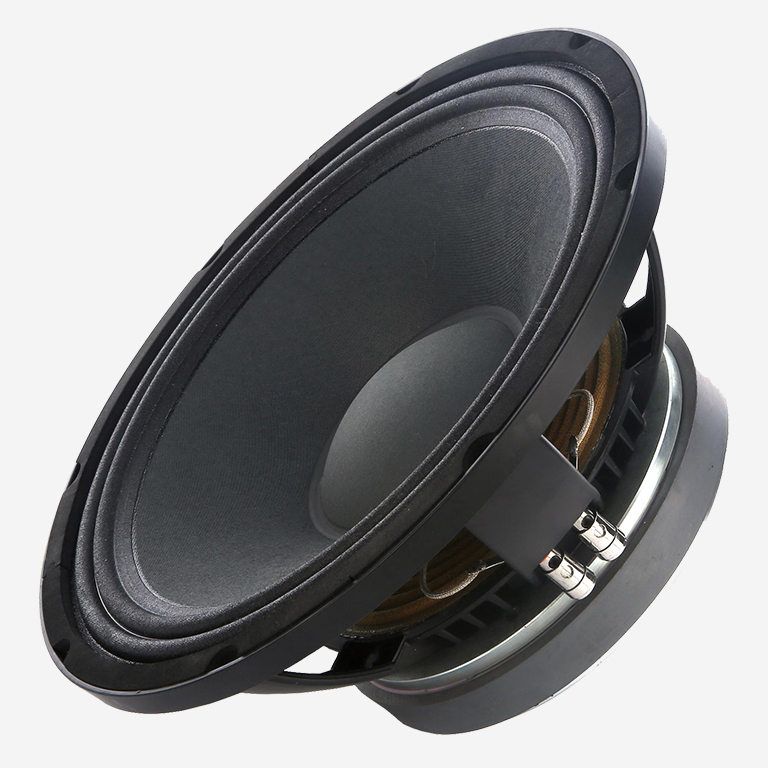

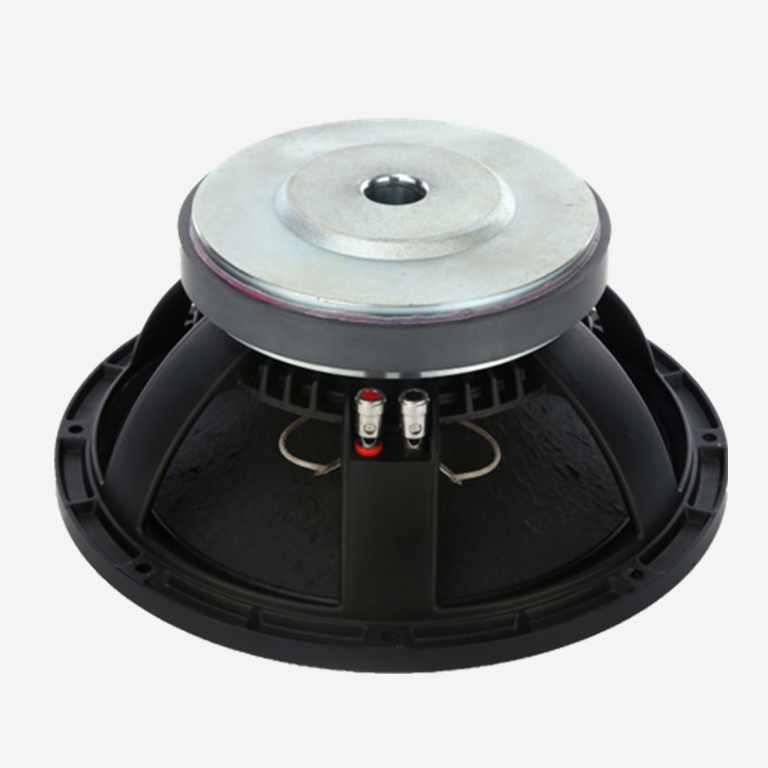

YR12H300 12inch 250W 8Ohms Subwoofer Professional Aluminum Pot Rack Woofer Speaker

二维码
13926186982
产品详情产品评论(0)

12inch Powered Woofer Professional Speaker 300W 8ohm Speaker

Basic Information


Model NumberYR12-H300
Frequency Range60-2800Hz
Sensitivity96dB

Magnet

Neodymium
Program Power600W
Voice Coil75mm/3inch
Impedance8ohm
Packing Size34*34*36cm
Transport PackageCarton
TrademarkTYR
OriginGuangzhou, China


Product Description

1. Nominal Diameter: 300mm/18.1inch

2. Rated Impedance: 8ohm

3. Power Handling Capacity: 300 Watts

4. Program Power: 600W

5. Sensitivity 1W/1m: 96dB

6. Frequency Range: 60-2800Hz

7. Effective Piston Diameter: 260mm/12.0inch

8. Minmum Impedance: 6.3 ohm

9. Voice Coil Diameter: 75mm/3inch

10. Voice Coil Material: Copper

11. Voice Coil Winding Depth: 18mm/0.9inch

12. Number of Layers: 2

13. Kind of layer: Outside


Thiele-Small Parameters

1. Resonance Frequency: 52Hz

2. DC Resistance: 5.4 ohm

3. Mechanical Factor: 4.68

4. Electrical Factor: 0.42

5. Total factor: 0.387

6. BL Factor: 16.1 Txm

7. Effective Moving Mass: 63.6 gr

8. Equivalent Cas air load: 63.43liters

9. Effective piston area: 0.52mm


Mounting Information:

1. Overall Diameter: 311mm/12.5inch

2. Bolt Circle Diameter: 298mm

3. Bolt Hole Diameter: 6.5mm/0.3inch


Baffle Cutout Diameter

1. Baffle Cutout Diameter: 291mm

2. Bolt Circle Diameter: 298/8mm

3. Net Weight: 6.65kg/pcs

4. Shipping Weight: 7.25kg/pcs

5. Package: 2 pcs/ctn

6. Packing Size: 34*34*36mm


Product Features:

1. 12"woofer

2. 3inch voice coil, inner and outer winding, high temperature resistant coil

3. Sound clear and medium frequency thick



Packing details:

Package: 2 pieces in a carton

Packing Size: 34*34*36cm

QTY(40HQ): 1619PCS

Why choose us?

A: We've been a professional speaker manufacturer for over 10 years.

     We are the great speaker manufacturer in China.

     OEM/ODM service are acceptable.

Our service:

A: We have our own factory, we can make any design and brand.

     We can do with your requirements.

     We have more than 7 engineers for RD, we can finish your sammples in 3-7 days.

     Our capacity is over 90,000 pieces a month, we never delay your shipments.

     We will strictly control the quality, 100% inspection before shipment.

Warranty service:

A: Before the delivery, we will check the items' quality strictly one by one.

     If it is caused by the shipping accidents, we will not responsible for it.

What is the terms of packing?

A: We pack the goods in a brown box with paperboard and 12pcs/box.

How about the supply?

A: We can produce 90,000pieces per month.
