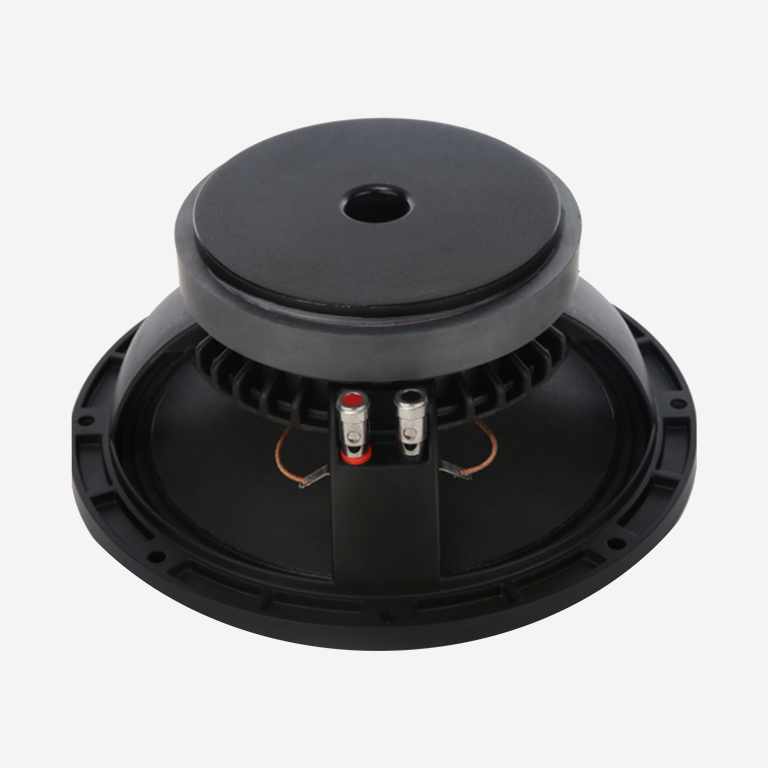

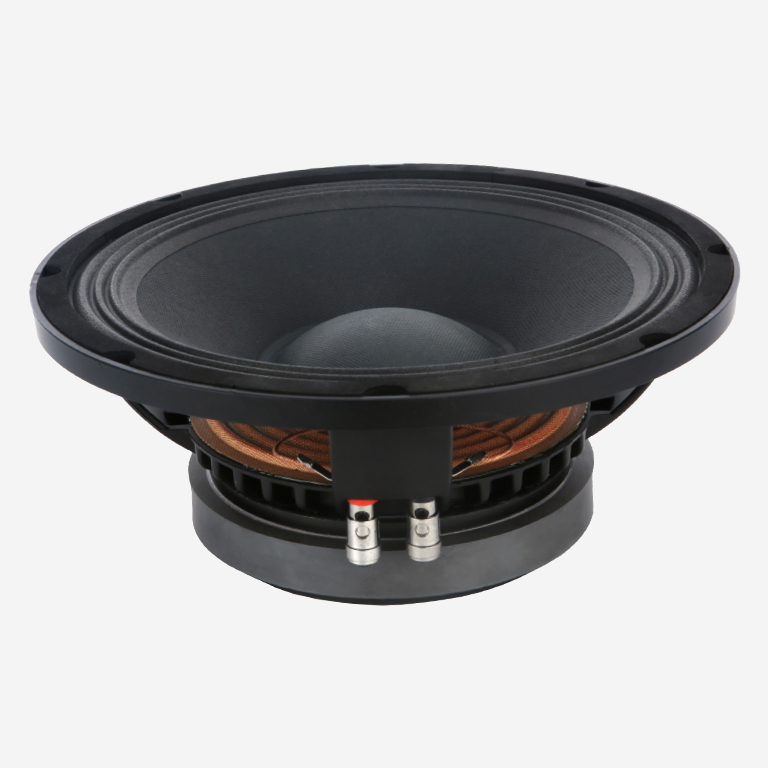

10inch Black Basin Stereo Professional Woofer Speaker
Basic Information
Model Number | YR-10H21 |
Frequency Range | 72-3000Hz |
Sensitivity | 93.5dB |
Magnet | Neodymium |
Program Power | 400W |
Voice Coil | 65mm/2.5inch |
Impedance | 8ohm |
Packing Size | 54.5*27.5*32cm |
Package | Carton |
Trademark | TYR |
Origin | Guangzhou, China |
Product Description
1. Nominal Diameter: 250mm/10inch
2. Rated Impedance: 8ohm
3. Power Handling Capacity: 200 Watts
4. Program Power: 400W
5. Sensitivity 1W/1m: 93.5dB
6. Frequency Range: 72-3000Hz
7. Effective Piston Diameter: 250mm/10inch
8. Minmum Impedance: 6.3 ohm
9. Voice Coil Diameter: 65mm/2.5inch
10. Voice Coil Material: Copper
11. Voice Coil Winding Depth: 16.7mm/0.9inch
12. Number of Layers: 2
13. Kind of layer: Outside
Thiele-Small Parameters
1. Resonance Frequency: 60Hz
2. DC Resistance: 5.4 ohm
3. Mechanical Factor: 5.75
4. Electrical Factor: 0.41
5. Total factor: 0.38
6. BL Factor: 13.5 Txm
7. Effective Moving Mass: 37 gr
8. Equivalent Cas air load: 33.3liters
9. Effective piston area: 0.034mm
Mounting Information:
1. Overall Diameter: 256mm/10.5inch
2. Bolt Circle Diameter: 246mm
3. Bolt Hole Diameter: 6.5mm/0.3inch
Baffle Cutout Diameter
1. Baffle Cutout Diameter: 231mm
2. Bolt Circle Diameter: 246/8mm
3. Net Weight: 4.25kg/pcs
4. Shipping Weight: 4.92kg/pcs
5. Package: 4 pcs/ctn
6. Packing Size: 54.5*27.5*32mm
Product Features:
1. 10"woofer
2. 2.5inch voice coil, inner and outer winding,
3. high temperature resistant coil
4. Sound clear and Medium frequency thick
